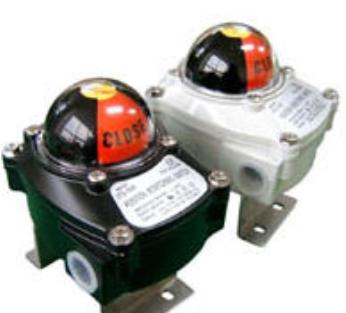

ITS series position monitoring switch boxes are primary a rotary position indication device designed to integrate valve and NAMUR rotary pneumatic actuator with a variety of mounting options, internal switches or sensors and configurations.
ITS 100 series
ITS 100 series are specially designed suitable for small size pneumatic actuator and valves to reduce installation space, but provides high performance by equipping a variety of switches and sensors.
|
Enclosure t Protection |
Weather proof, IP67 |
|
Ingress Protection |
IP67 |
|
Coating |
Epoxy-polyester inside and outside against corrosion, Special coating as option |
|
Ambient Temp |
-20℃~+85℃, Higher temperature on request |
|
Cable entry |
2-1/2" NPT, 2-M20, 2-1/2"PF on request |
|
Terminal |
8 terminals strips (6 for switches, 2 for solenoid connection) |
|
Position monitoring indicator |
0~90˚ Yellow-Open / Red-Close (Dome) |
|
Switches |
2 X SPDT Mechanical switches(form C) |
|
Mounting bracke |
2 X SPDT Mechanical switches(form C) |
