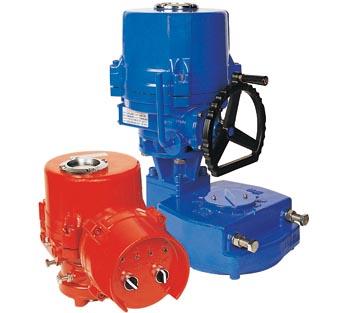

ITQ SERIES
- Compact and robust construction, light weight providing high output (Max 9000Nm).
- Wide range torque variation (From min 60Nm to max 9000Nm)
- Hard anodized aluminum housing inside and outside with external Epoxy powder coated against severe industrial environment.
- Enclosure using radial seals & O-rings that provide protection to waterproof IP67 (Nema 4 & 4X) and optional watertight IP68 or Explosion proof (EEx d IIB T4).
- Mounting base according to ISO5211 standard.
- Removable drive bushing for easy machining and installation.
- Self-locking provided by double worm gearing (no brake required).
- Auto-declutching manual override handwheel with padlockable auto / manual switchable lever.
- Reliable Mechanical Torque sensing system providing safe operation in overload condition.
- Large size window and indicator provide better position indication from a distance.
- Various Local position control options providing easy commissioning and operation in field.
Digitalized control component.
