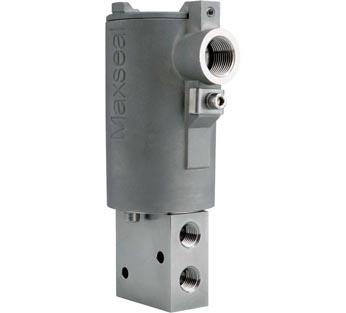

Maxseal Solenoid Operated Valves

Direct acting, balanced and universal poppet valve design
NACE compliant 316 stainless steel enclosure and valve assembly
Surge suppression diodes and limit EMF(Electromagnetic Field) on coil shut down
Class H insulated coil rated for continuous duty
Standard HNBR seals or other options
Lightning Protection
Low friction valve, Low power consumption, Low heat generation
Low temperature rating (-60℃~+120℃)
Guaranteed to pull in at a minimum of 87.5% of nominal voltage
Available in 5/2, 3/2, 2/2 options
Automatic, Push button manual override / reset execution

Ordering Information & Example

Model	Port Configure	Operation	Connection	Seat/Seal Materials	Voltage
GO	3	A	A3	H	B
GO ICOS Ex d	3 3/2	A=AUTO P=PBMR C=PBMO	A1 1/4”NPT	H=HNBR E=EPDM N=Nylon V=Viton F=Fluor-Silicone	A=18/33VDC B=24VDC C=50VDC D=110VDC E=125VDC F=25VAC G=110VAC H=240VAC
GZ ICOS Ex ia	5 5/2位	A=AUTO P=PBMR C=PBMO	A3 1/2”NPT	H=HNBR E=EPDM N=Nylon V=Viton F=Fluor-Silicone
