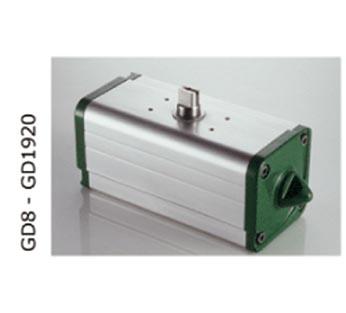

GD ACTUATOR DATASHEET

Special scotch yoke design that gives an increased torque and the seat break out point.
The use of steel parts instead of aluminium parts, ensures high wear resistance to the internal mechanism and consequent longer working life.
Compact design with reduced overall dimension allows an easy handling & minimal air (energy) consumption.
Special compound seals and guide on the sliding pistons, ensures self lubrication for life.
Internal bores are fine lapped and have anodized surface treatment for lower friction and perfect piston sealing.
Maintenance free for the full actuator working life.
Standard stainless steel drive shaft protects against the environmental corrosion.
Standard stroke adjustment.
Atex 94/9/CE for suitability of the equipment intended for the use in Potentially Explosive Atmosphere.

ACTUATOR SIZE (torque in N at 5,6 Bar)	NOMINAL TORQUE Nm at 5,6 Bar	ISO FLANGE	A	B	C - depth	D - depth	E - depth	Number of screws	X / 2	Air Consumption l/cycle
GD08	8	F03	36	-	M5 - 8	-	9月10日	4	45°	0,034
GD15	15	F03	36	-	M5 - 8	-	11月13日	4	45°	0,08
GD15	15	F04	42	-	M5 - 8	-	11月13日	4	45°	0,08
GD30	30	F03 - F05	36	50	M5 - 8	M6 - 9	11月13日	4	45°	0,15
GD30	30	F04	42	-	M5 - 8	-	11月13日	4	45°	0,15
GD60	60	F04	42	-	M5 - 8	-	14 - 16	4	45°	0,30
GD60	60	F05 - F07	50	70	M6 - 9	M8 - 12	14 - 16	4	45°	0,30
GD106	106	F05 - F07	50	70	M6 - 9	M8 - 12	17 - 19	4	45°	0,55
GD180	180	F07 - F10	70	102	M8 - 12	M10 - 15	22 - 24	4	45°	0,95
GD240	240	F07 - F10	70	102	M8 - 12	M10 - 15	22 - 24	4	45°	1,3
GD360	360	F07 - F10	70	102	M8 - 12	M10 - 15	22 - 24	4	45°	1,8
GD480	480	F10 - F12	102	125	M10 - 15	M12 - 18	27 - 29	4	45°	2,6
GD720	720	F10 - F12	102	125	M10 - 15	M12 - 18	27 - 29	4	45°	3,5
GD960	960	F12	125	-	M12 - 18	-	36 - 38	4	45°	4,9
GD960	960	F14	140	-	M16 - 24	-	36 - 38	4	45°	4,9
GD1440	1440	F12	125	-	M12 - 18	-	36 - 38	4	45°	7,6
GD1440	1440	F14	140	-	M16 - 24	-	36 - 38	4	45°	7,6
GD1920	1920	F12 - F16	125	165	M12 - 18	M20 - 30	46 - 48	4	45°	10,2
GD1920	1920	F14	140	-	M16 - 24	-	46 - 48	4	45°	10,2
GD2880	2880	F16	165	-	M20 - 30	-	46 - 48	4	45°	20,0
GD3840	3840	F16	165	-	M20 - 30	-	46 - 48	4	45°	24,3
GD5760	5760	F25	254	-	M16 - 24	-	55 - 58	8	22,5°	38,0
GD8000	8000	F25	254	-	M16 - 24	-	55 - 58	8	22,5°	50,0
