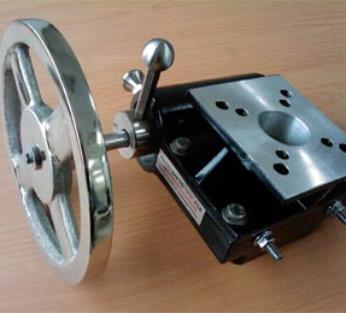

DECLUTCHABLE MANUAL OVERRIDE
The MO Series declutch-able gear operators offer simple and reliable manual positioning of valves, dampers and other quarter-turn devise when overriding, existing pneumatic or hydraulic rotary actuators. All GLC MO units are suitable for indoor and outdoor use and combine rugged construction, light weight and modular design to provide the most efficient and cost effective solution to a full range of manual override requirements. The self-locking worm gear design means safe and easy operation, positive manual positioning and extremely long life. The GLC override can be adapted to any quarter-turn actuator and may even be installed in the field on existing valves

Body

:

Aluminum alloy ( JIS AC7A )

Gear Quadrant

:

Steel for MO-100/350/1000 ; Steel / Aluminum bronze for MO-4000

Worm

:

Stainless steel 304

Worm Shaft

:

Stainless steel 304

Hand Wheel

:

MO-100/350/1000 Carbon steel with chromium anodized ( option: PVC )

MO-4000 Stainless steel 304

Temperature

:

-20 to +80

Stroke Adjustment

:

+5° and -5° at each end

Finish

:

Two part polyurethane coating

Seal

:

VITON

Fasteners

:

Stainless steel 304
