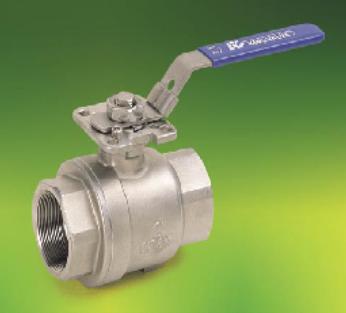

2PC DIRECT MOUNT SCREWED BALL VALVE

Built-in ISO 5211 Direct Mounting Pad.
Square Stem for Direct Mounting with Automation.
Anti-Static Devices for Ball-Stem-Body.
Blow-out Proof Stem.

SIZE	1/4”– 4” (11 – 100mm)
PRESSURE RATING	1/4”- 2 to 2000 PSI；2 1/2”- 4” to 1500 PS
Materials	Stainless Steel, Carbon Steel
End Connection	Screwed
Service Application	Water, Oil, Gas, Thermal Fluid, Chemicals and others
Certifications	ISO 9001, PED 97 / 23 / EC
Operation	Manual or Actrated

DESCRIPTION	MATERIALS
	STAINLESS STEEL	CARBON STEEL
BODY	ASTM A182 F316 / A351 CF8M	ASTM A105 / A216 WCB
GASKET	PTFE
END CAP	ASTM A351 CF8M	ASTM A216 WCB
SEAT	METAL
	PTFE
	RPTFE /GPTFE/ CPTFE
	PEEK
BALL	ASTM A351 CF8M/316	ASTM A351 CF8M/304/316
STEM	ASTM A276 316	ASTM A276 304
THRUST WASHER	PTFE
STEM PACKING	PTFE
GLADN	AISI 304
BELLEVILLE WASHER	AISI 301
PACKING NUT	AISI 304
SPRING WASHER	AISI 304
HANDLE NUT	AISI 304
HANDLE	AISI 304	ZINC PLATED STEEL
HANDLE GRIP	VINIL PLASTISOL
STOPPOER NUT	AISI 304	CARBON STEEL
O-RING	VTION
