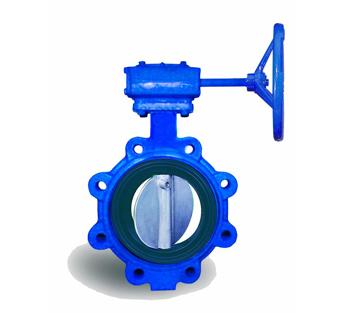

Lug Type Butterfly Valve
- The valve seat can be easily disassembles and assembled that will be easy to maintenances online.
- Full port design for the valves, the impurities cannot influence the open or close of the valve. The unit O-rings connect with the two ends of the valves insured the valves securely joint with the pipelines without any other gaskets. The seat can use different materials depend on the media and working condition.
- The structure of the disc is streamlined design. It can be used at bi-direction operate. The flow resistant is lower and flow character is well.
- Unique design for taper pin, which caused the disc and the shaft connect very well.
- The length of Face to Face acc to the standard of ISO5752.
- The standard acc to ISO 5211, Which connection between the valves and the actuators.
- The actuators can choose the Manual operator, Electric actuators, and Pneumatic actuators depend to the customer’s requirements.
SIZE |
DN50 ~ DN600 |
PRESSURE RATING |
PN10 / PN16, ANSI 150#, JIS 10K |
BODY TEST PRESSURE |
1.5 ~ 2.4 Mpa |
SEAT TEST PRESSURE |
1.1 ~ 1.7Mpa |
OPERATION TEMPERATUER |
|
FLUID |
Sewage, Water, Oil, Gas |
PAINTING |
Epoxy Coating |
